Product Details:
Description:Siemens
Product No :6ES7214-1HG40-0XB0
https://www.achievers-automation.com More Products

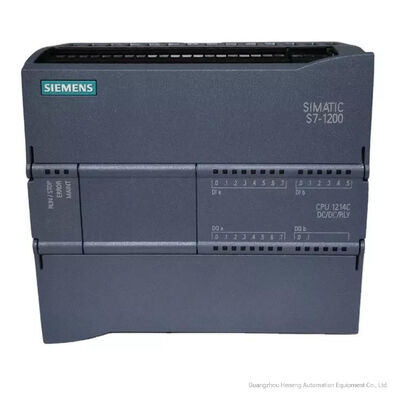

The Siemens 6ES7214 - 1HG40 - 0XB0 is a compact CPU module under the SIMATIC S7 - 1200 product family, specifically the CPU 1214C model. It is tailored for small and medium - sized industrial automation projects, integrating rich on - board I/O interfaces and stable communication capabilities. This module adopts a DC/DC/relay design, which can flexibly connect various sensors and actuators. Meanwhile, it supports multiple programming languages and seamless integration with Siemens industrial software and other devices, ensuring efficient and reliable operation in complex industrial control scenarios. It has become a core component in many fields such as manufacturing assembly lines and process control.
Detail:
| Basic Information |
Product Model |
6ES7214 - 1HG40 - 0XB0 |
|
Product Series |
Siemens SIMATIC S7 - 1200 |
|
Product Type |
Compact CPU (CPU 1214C) |
| Memory Configuration |
Work Memory |
150 KB |
|
Load Memory |
4 MB |
|
Program/Data Memory |
100 KB (Initial specification, updated to 150 KB in subsequent configurations) |
| On - board I/O |
Digital Inputs |
14 channels, 24V DC |
|
Digital Outputs |
10 channels, relay type, 2A per channel |
|
Analog Inputs |
2 channels, 0 - 10V DC; Input resistance ≥ 100 kOhms; Max resolution 10 bits (including sign) |
|
Analog Outputs |
None |
| Power Supply |
Rated Voltage |
24V DC |
|
Voltage Range |
20.4 V DC - 28.8 V DC |
|
Protection Function |
Equipped with reverse polarity protection |
|
Power Consumption |
Typical power loss of 12W; Current consumption of 500mA |
|
Maximum Input Current |
12A at 28.8V |
| Performance |
Processing Speed |
Typical 0.08 µs per bit operation |
|
Programming Languages |
Supports LAD (Ladder Logic), FBD (Function Block Diagram), SCL (Structured Text) |
| Communication |
Supported Protocols |
PROFINET, TCP/IP, UDP |
|
Communication Features |
Facilitates connection with industrial networks for real - time data transmission |
| Physical & Environmental Characteristics |
Dimensions (W×H×D) |
110 mm × 100 mm × 75 mm |
|
Net Weight |
Approximately 0.384 kg; Some versions up to 0.452 kg |
|
Protection Rating |
IP20 |
|
Operating Temperature |
- 20 °C to 60 °C |
|
Mounting Method |
Suitable for DIN rail mounting and wall mounting |
| Software & Compliance |
Required Programming Software |
TIA Portal V13 SP1 or higher |
|
Compliance Standards |
Complies with RoHS directive; EU ECCN: NLR; US ECCN: EAR99 |
