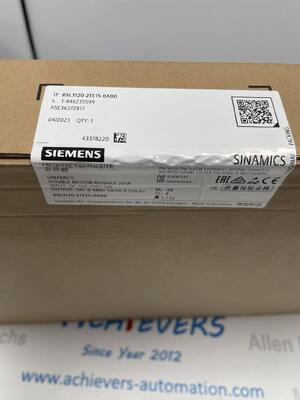

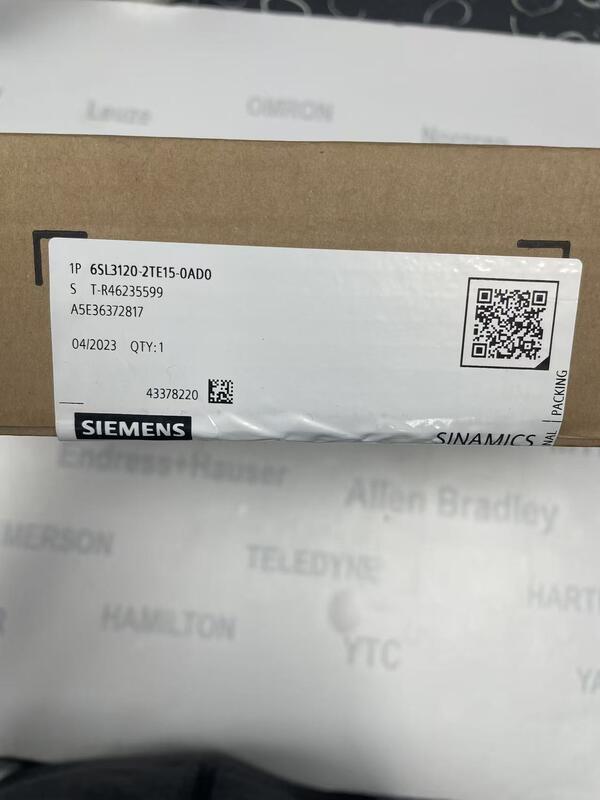

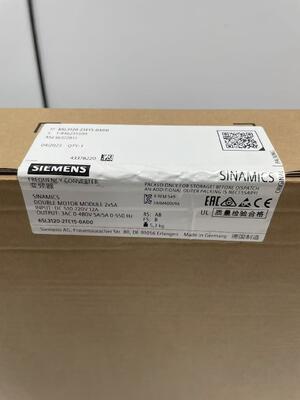

SIEMENS 6SL3120 - 2TE15 - 0AD0 compact dual - axis motor module
Product Details:
Description:Siemens
Product No. : 6SL3120 - 2TE15 - 0AD0
https://www.achievers-automation.com More Products
The Siemens 6SL3120 - 2TE15 - 0AD0 is a compact dual - axis motor module belonging to the SINAMICS S120 product series, which is a key component in Siemens' industrial automation drive solutions. Designed for medium and low - power multi - axis control scenarios, this module integrates two independent drive axes into a single unit. It can simultaneously drive and control two servo or variable - frequency motors, effectively saving cabinet space, simplifying wiring and system architecture, and ensuring high precision and stability in motor operation. It is widely used in fields such as precision CNC machine tools, automated assembly lines, lithium - ion battery production equipment, and automotive component manufacturing, providing reliable power and control support for various industrial automation systems.
Detail:
| Product Model |
6SL3120 - 2TE15 - 0AD0 |
| Product Series |
Siemens SINAMICS S120 |
| Module Type |
Dual - axis motor control module |
| Controllable Axes |
2 independent control axes, supporting inter - axis synchronization and interpolation movements (linear interpolation, circular interpolation) |
| Adaptable Motor Types |
Asynchronous motors, synchronous motors, servo motors (including permanent magnet synchronous motors) |
| Power - Related Parameters |
Each axis is applicable to small and medium - power motors; supports DC bus sharing to improve energy efficiency |
| Voltage Rating |
Input voltage: DC 600V; Output voltage: 3AC 380V - 480V; Control voltage: DC 24V (±10%) |
| Current Rating |
5A/5A (output current per axis) |
| Control Modes |
Position control, speed control, torque control; supports vector control, servo control, and V/f control |
| Position Control Precision |
Up to ±1 pulse under pulse control mode (when matched with a high - precision 17 - bit absolute encoder, micron - level positioning can be achieved) |
| Speed Control Range |
1:10000, with a minimum stable speed of 1rpm |
| I/O Channels |
16 digital input channels (24V DC, response time ≤100μs, supporting 1MHz high - speed pulse input); 8 digital output channels (24V DC, maximum output current 2A per channel); 4 analog input channels (12 - bit resolution, range 0 - 10V or 0 - 20mA); 2 analog output channels (12 - bit resolution, range 0 - 10V or 0 - 20mA) |
| Communication Interfaces |
Supports PROFINET, PROFIBUS - DP; compatible with DRIVE - CliQ for high - speed data transmission; communication rate up to 100Mbps, supporting IRT real - time control protocol |
| Structural Features |
Book - type D design; internal air cooling; net weight of approximately 4.7kg |
| Operating Environment |
Operating temperature: 0℃ - 40℃; Storage temperature: - 20℃ - 60℃; Protection level: IP20 |
| Protection Functions |
Overcurrent protection, overvoltage protection, undervoltage protection, overheating protection, motor stall protection, encoder fault protection, short - circuit protection |
| Safety Certifications |
CE certification, UL certification; complies with IEC 61508 SIL2, ISO 13849 - 1 PLd safety standards |
| Compatible Software |
Siemens STARTER software (V5.4 and above), SCOUT software (for motion control configuration) |
| Cooling Method |
Internal air cooling, optimized heat dissipation design for stable operation in compact spaces |
