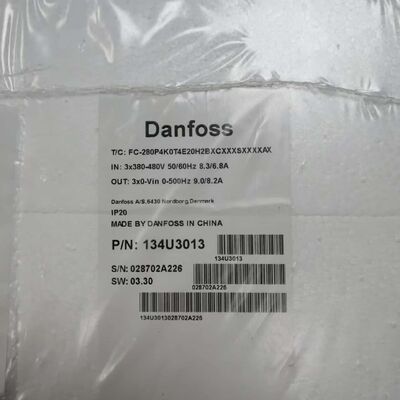

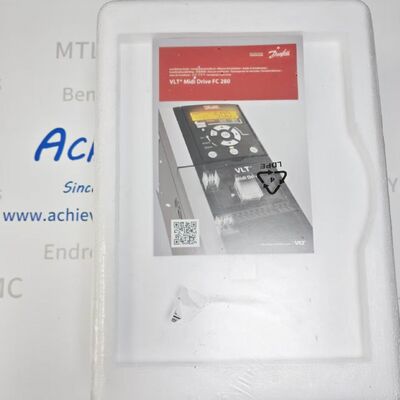

Danfoss FC-280P4K0T4E20H2BXCXX VLT Midi Drive 4kW 380-480V Profibus AC Frequency Converter
Description:
Description: Danfoss
Product No. :FC-280P4K0T4E20H2BXCXX
https://www.achievers-automation.com More Products
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Built with integrated Profibus DP communication, internal brake chopper, conformal coated circuit boards, EMC Category C3 filtering and dual-channel STO functional safety, this IP20 chassis drive eliminates the need for most external auxiliary components, cutting cabinet panel assembly space and wiring complexity. It features pluggable power/control terminals, wide operating temperature tolerance and native backward compatibility with legacy VLT 2800 drives for seamless equipment retrofitting. No local LCP display is factory fitted to this variant; separate display modules are available as standalone accessories.
Detail:
| Parameter Category |
Detailed Technical Value for FC-280P4K0T4E20H2BXCXX |
| Full Model Code |
FC-280P4K0T4E20H2BXCXX |
| Official Product Line |
Danfoss VLT® Midi Drive FC-280 |
| Rated Motor Power |
4.0 kW / 5.0 HP |
| Input Power Supply |
3-phase 380–480 VAC, 50/60 Hz |
| Rated Output Current |
14.4 A |
| Max Output Frequency |
0–500 Hz |
| Overload Capacity |
160% continuous overload for 60 seconds; 180% peak for 1 second |
| Integrated Fieldbus |
Profibus DP (built-in) |
| Brake Function |
Internal integrated brake chopper |
| EMC Compliance Class |
EMC Cat C3 (200/400V system) |
| PCB Protection |
Conformal coated circuit board |
| Local Display Unit |
No factory-fitted LCP keypad/display (accessory optional) |
| Functional Safety |
Dual-channel STO, SIL 2 / PL d certification |
| Built-In Interfaces |
USB port, Modbus RTU standard |
| Chassis Frame Size |
K2 Frame |
| Protection Rating |
IP20 (chassis cabinet mount) |
| Physical & Environmental Item |
Standard Spec Data |
| Overall Unit Height |
272.5 mm |
| Overall Unit Width |
90 mm |
| Overall Unit Depth |
210 mm |
| Net Weight |
4.02 kg |
| Gross Shipping Weight |
4.54 kg |
| Operating Ambient Temp (Full Load) |
-10°C ~ +45°C (113°F) |
| Derated Operating Temp Max |
Up to 55°C (131°F) with load derating |
| Storage Temperature Range |
-25°C ~ +65°C |
| Relative Humidity |
5–95% non-condensing |
| Mounting Style |
Vertical panel DIN / cabinet wall mount |
| Terminal Design |
Pluggable control terminals; pluggable power terminals |
| Cooling Method |
Natural convection + internal forced air cooling |
| Vibration Resistance |
Compliant IEC 60068-2-6 industrial vibration standards |
