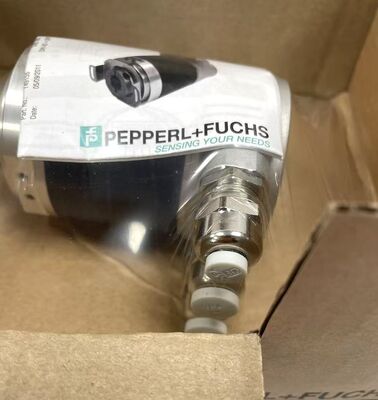

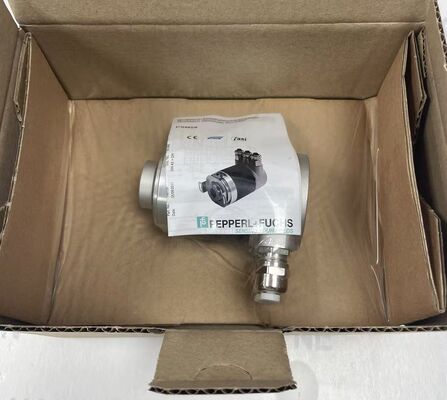

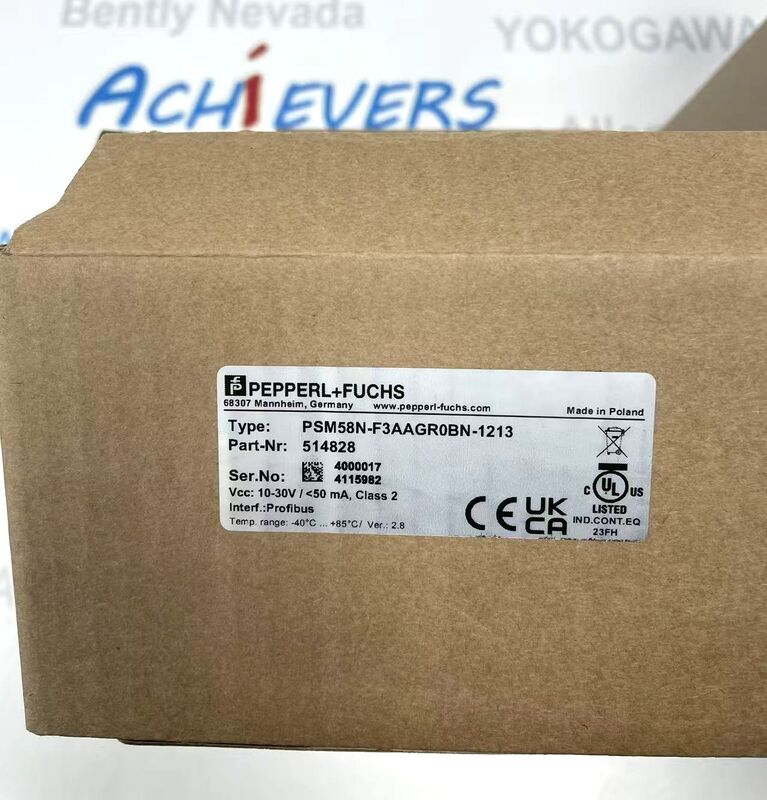

Pepperl Fuchs PSM58N-F3AAGROBN-1213 Multi-Turn Absolute Encoder
Description:
Manufacturer : Pepperl+Fuchs
Product No. : PSM58N-F3AAGROBN-1213
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Pepperl+Fuchs PSM58N-F3AAGROBN-1213 is a high-performance multi-turn absolute encoder designed for precise position, speed, and direction detection in industrial automation systems. Utilizing advanced optical scanning technology, this encoder delivers reliable and accurate feedback even in harsh industrial environments, making it an essential component for motion control applications. With its robust construction, high protection rating, and flexible interface compatibility, the PSM58N-F3AAGROBN-1213 provides a stable and durable solution for a wide range of industrial sectors, ensuring optimal performance in critical control processes.
Detail:
|
Specification Item
|
Details
|
|
Model
|
PSM58N-F3AAGROBN-1213
|
|
Brand
|
Pepperl+Fuchs (倍加福)
|
|
Product Type
|
Multi-Turn Absolute Encoder
|
|
Detection Principle
|
Optical Scanning
|
|
Resolution
|
Single-turn: Up to 16 Bit; Multi-turn: 14 Bit; Total: Up to 30 Bit
|
|
Interface Type
|
PROFIBUS (PNO profile 3.062, RS-485)
|
|
Transmission Rate
|
0.0096 ... 12 MBit/s
|
|
Output Code
|
Binary Code; Counting direction programmable (increasing or decreasing clockwise)
|
|
Supply Voltage
|
10 ... 30 V DC
|
|
No-Load Current
|
230 mA at 10 V DC; 100 mA at 24 V DC
|
|
Power Consumption
|
2.5 W
|
|
Warm-Up Time
|
< 1000 ms
|
|
Linearity
|
± 2 LSB at 16 Bit; ± 1 LSB at 13 Bit; ± 0.5 LSB at 12 Bit
|
|
Operating Temperature Range
|
-40 ... 85 °C (-40 ... 185 °F)
|
|
Storage Temperature Range
|
-40 ... 85 °C (-40 ... 185 °F)
|
|
Protection Rating
|
IP65 (IEC 60529); IP66 with shaft seal
|
|
Mechanical Construction
|
Option 1: Housing - Powder-coated aluminum; Flange - Aluminum; Shaft - Stainless steel; Option 2 (Inox): Housing, Flange, Shaft - Stainless steel
|
|
Weight
|
Approx. 600 g (Option 1); Approx. 1200 g (Option 2)
|
|
Maximum Rotational Speed
|
12000 min⁻¹
|
|
Moment of Inertia
|
30 gcm²
|
|
Starting Torque
|
≤ 3 Ncm (models without shaft seal)
|
|
Vibration Resistance
|
10 g, 10 ... 2000 Hz (DIN EN 60068-2-6)
|
|
Shock Resistance
|
100 g, 6 ms (DIN EN 60068-2-27)
|
|
EMC Compliance
|
Emission: EN 61000-6-4:2007; Immunity: EN 61000-6-2:2005
|
|
Certifications
|
UL Certified, cULus Certified (General Purpose, Class 2 Power Supply)
|
